FR58L2MS-3020S(A)

      FR58L2MS-3020S(A)

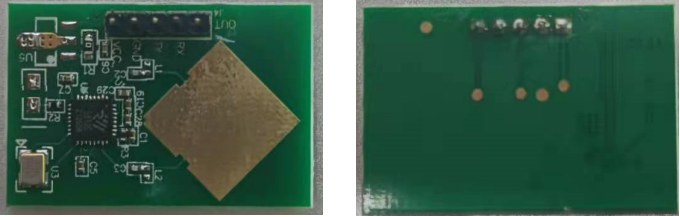

      The FR58L2MS-3020S(A) microwave induction sensor conventional power consumption radar sensor module uses the Doppler principle to transmit high-frequency electromagnetic waves through the antenna and receive and process the reflected waves to determine the movement of objects in the coverage area and give corresponding electrical signals. It is widely used in induction lighting, security, small home appliances, smart homes, automatic door control switches, welcome devices and other products, as well as garages, corridors, corridors, courtyards, balconies, toilets and other places that require automatic induction control.

      Features

      Longer sensing distance than infrared sensor module, wider angle, no dead zone, lens and lens aging problems are not affected by temperature, humidity, airflow, dust, noise, brightness, etc., strong anti-interference ability can penetrate acrylic, glass and thin Built-in MCU of non-metallic materials, embedded multiple digital filtering algorithms, with higher noise immunity


      Application areas and scenarios

      Used in induction lights, security, small appliances, smart homes, automatic door control switches, welcomeers and other products, as well as garages, corridors, corridors, courtyards, balconies, toilets and other places that require automatic induction and control of lights.


      Product parameter

      parameterSmall valueTypical valueBig valueunitRemark
      Transmit frequency

      5725

      58005875MHZ
      Input voltage4.555.5VIf input high voltage, need to add LDO
      Input high level5V
      Output low level0V
      Beam angle120Related to the antenna
      Working current20mA
      Sensing distance0.12.512MAdjustable
      Delay time2SAdjustable
      Photosensitive valueN/AN/AN/ANo photosensitivity
      Operating temperature-3085°C
      storage temperature-50125°C

      The delay time can be customized according to customer needs, whether a photosensitive switch is required and the trigger intensity

      Installation Precautions

      · Avoid installing metal accessories or shells, metal will block the microwave and affect the effect

      · Antenna surface should avoid high current circuit coverage, which may cause interference

      · The output current of the sensor is very weak, and driving too large current may easily cause false alarms. The load can be driven by an isolated driving method, so that the OUT pin can read the status of the output port.

      · Please use a power supply with a smaller ripple for power supply, especially low-frequency ripples are likely to interfere with the work of the sensor. It is recommended that the power supply capacitor be greater than 100uF

      · The recommended installation distance of the sensor is greater than 1.5m

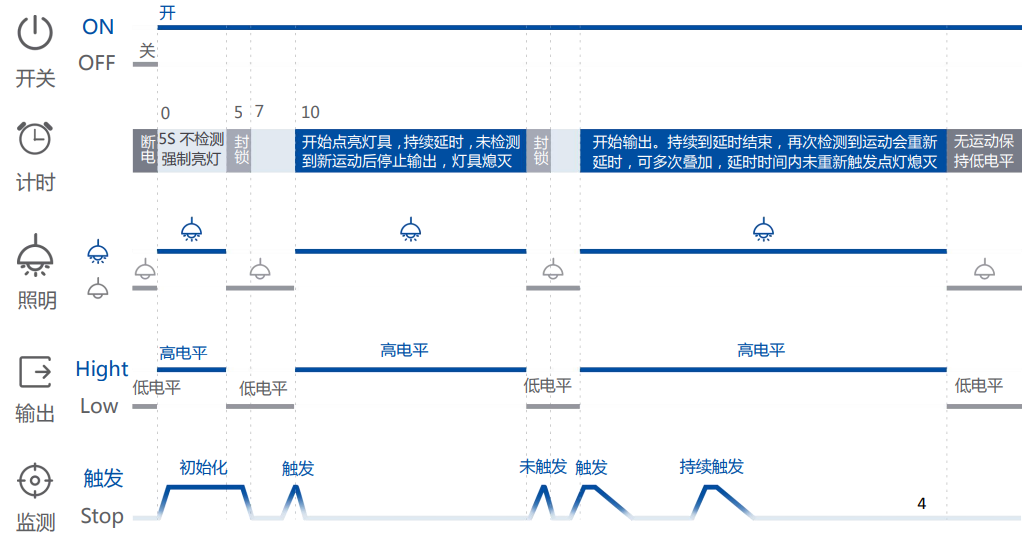

      Timing diagram


      Precautions

      · The installation process of the product requires keeping the antenna board at a certain height away from the metal plane, and not close to or touching the metal plane, otherwise the product may not work normally!

      · Avoid installing metal accessories or enclosures. Metal will block microwaves and affect the effect; therefore, this product should not be installed in a metal enclosure for use. However, the penetration effect is better for obstacles such as plastic, ceramics, and wood soil;

      · Please use a power supply with a small ripple for power supply, especially low-frequency ripples are likely to interfere with the operation of the sensor. It is recommended that the power supply capacitance be greater than 100uF;

      · The output current of the sensor is very weak. Excessive current driving is likely to cause false alarms. The load can be driven by isolation driving, or the MCU can be used to read the status of the output port;

      · When multiple sensors are used in the same site, it is recommended that the product installation distance be greater than 1.5m. Too close the installation distance may cause false alarms in individual cycles;

      · The antenna surface should be protected from high-current circuit coverage, which may cause interference.
